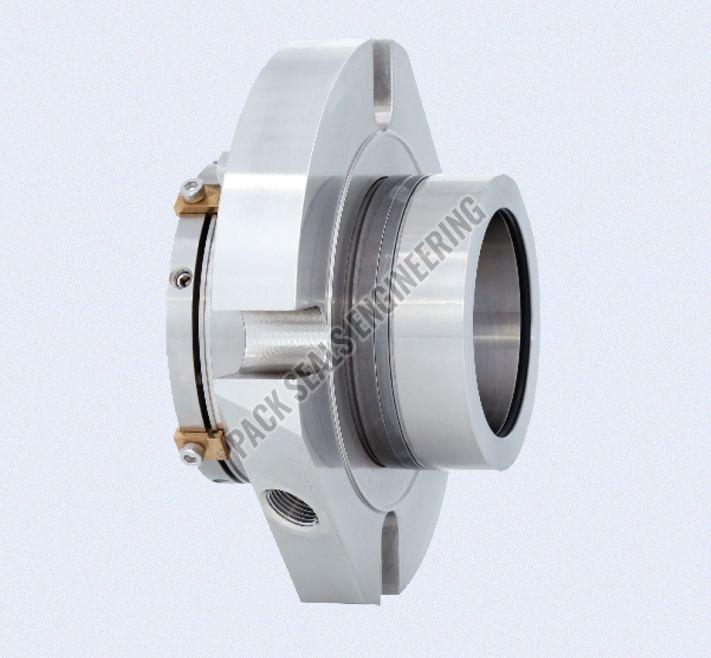

Standard Cartridge Seals
Leading Manufacturers, Exporters, Wholesaler and Retailer of Cartex Ansi Single Seals, E Cartex Dual Seals, Ecartex Ansi Dual Seals and Ecartex Single Seals from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |
| Specialities | Single seal, Available for standard (Cartex-ASPN) and big bore (Cartex-ABPN) seal chambers, Cartridge, Balanced, Independent of direction of rotation, Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or thr |
| Advantages | Ideal for use in ANSI process pumps, Universal applicable for packings conversions, retrofits or ori |
| Operating range | Cartex-ASPN, - ABPN, -ASTN, -ABTN, -ASQN, -ABQN, Shaft diameter: d1 = 1.000" ... 3.750", Other size |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)
- Seat: Silicon carbide (Q1)
- Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)
- Springs: Hastelloy® C-4 (M)
- Metal parts: CrNiMo steel (G)
Recommended applications
- Process industry
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
- Mining industry
- Food and beverage industry
- Universally applicable
- ANSI process pumps
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Application | Industrial Use |
| Country of Origin | India |
| Operating range | Shaft diameter: d1 = 25 ... 100 mm" (1.000" ... 4.000")Other sizes on request,Temperature: t= -40 oC ... 220 oC (-40 oF ... 428 oF), (Check O-Ring resistance), Sliding face material combination BQ1, Pressure: p1 = 25 bar (363 PSI), Sliding velocity: |
| Advantages | Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing D |
| Feature | Dual seal, Cartridge, Balanced, Independent of direction of rotation, Double pressure balanced Inte |
Preferred Buyer From
| Location | Anywhere in India |
Recommended Applications
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Mining industry
- Food and beverage industry
- Sugar industry
- Universally applicable
- Centrifugal pumps
- Eccentric screw pumps
Materials
- Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)
- Seat: Silicon carbide (Q1)
- Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)
- Springs: Hastelloy® C-4 (M)
- Metal parts: CrNiMo steel (G)
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |
| Specialities | Dual seal, Available for standard (eCartex-ASDN) and big bore (eCartex-ABDN) seal chambers, Cartridge, Balanced, Independent of direction of rotation, Double pressure balanced, Integrated pumping device |
| Advantages | Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing Di |
| Operating Range | Advantages Shaft diameter: d1 = 25 ... 100 mm (1.000" ... 4.000") Other sizes on request, Temperatur |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face product side: Silicon carbide DiamondFace® (Q15)
- Seat product side: Silicon carbide DiamondFace® (Q15)
- Seal face atmospheric side: Carbon graphite resin impregnated (B)
- Seat atmospheric side: Silicon carbide (Q1)
- Secondary seals: FKM (V), EPDM (E), FFKM (K), Perfluorcarbon rubber/PTFE (U1)
- Springs: Hastelloy® C-4 (M)
- Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)
Recommended Applications
- Process industry
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
- Mining industry
- Food and beverage industry
- Universally applicable
- ANSI process pumps
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Specialities | Single Seal,Cartridge,Balanced,Independent Of Direction Of Rotation,Single Seals Without Connections (-SNO),With Flush (-SN) And With Quench Combined With Lip Seal (-QN) Or Throttle Ring (-TN),Additional Variants Available For ANSI Pumps (e.g. |
| Type | Industrial Seals |
| Country of Origin | India |
| Advantages | Up to 80 % less energy consumption and minimized heat generation of seal due to friction-reducing Di |
| Operating range | Shaft diameter: d1 = 25 ... 100 mm (1.000 |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Silicon carbide DiamondFace (Q15)
- Seat: Silicon carbide DiamondFace (Q15)
- Secondary seals: FKM (V), EPDM (E), FFKM (K), Perfluorcarbon rubber/PTFE (U1)
- Springs: Hastelloy® C-4 (M)
- Metal parts: CrNiMo steel (G), CrNiMo cast steel (G)
Recommended applications
- Process industry
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
- Mining industry
- Food and beverage industry
- Sugar industry
- Universally applicable
- Centrifugal pumps
- Eccentric screw pumps
- Process pumps
