Product Details
Type
Industrial Seals
Country of Origin
India
Advantages
Safe operation (no fractures) because of seal face locking by square pin, Spring unit averted from the product so no sticking and clogging of the springs, Suitable for pressure reversals, Operation in vacuum without additional seat locking possible,
Specialities
Single seal, Balanced, Independent of direction of rotation, Stationary springs, Dual seals in tande
Operating range
Shaft diameter: d = 18 ... 100 mm (0.71" ... 3.94"), Pressure: p1*) = 25 bar (363 PSI), Temperature:
Recommended Applications
- Water and waste water technology
- Refining technology
- Dirty, abrasive and solid containing media
- Fugitive hydrocarbons (no API seal!)
- Sticky and stringy media
- Chemical standard pumps
- Sewage pumps
Materials
- Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1)
- Seat: Silicon carbide (Q1)
- Secondary seals: FKM (V), NBR (P), FFKM (K), PTFE (T)
- Springs: Hastelloy® C-4 (M)
- Metal parts: CrNiMo steel (G)

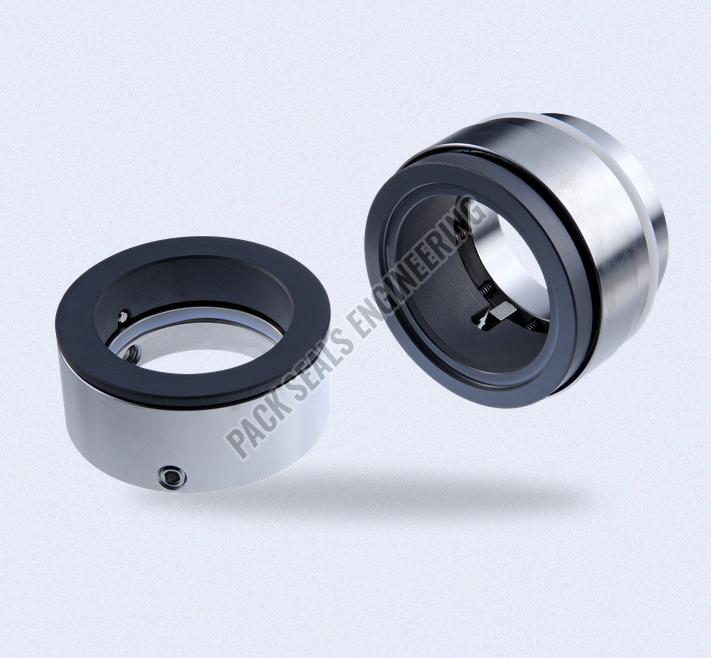

Looking for "PSRN Pusher Seals" ?
