Metal Bellows Seals

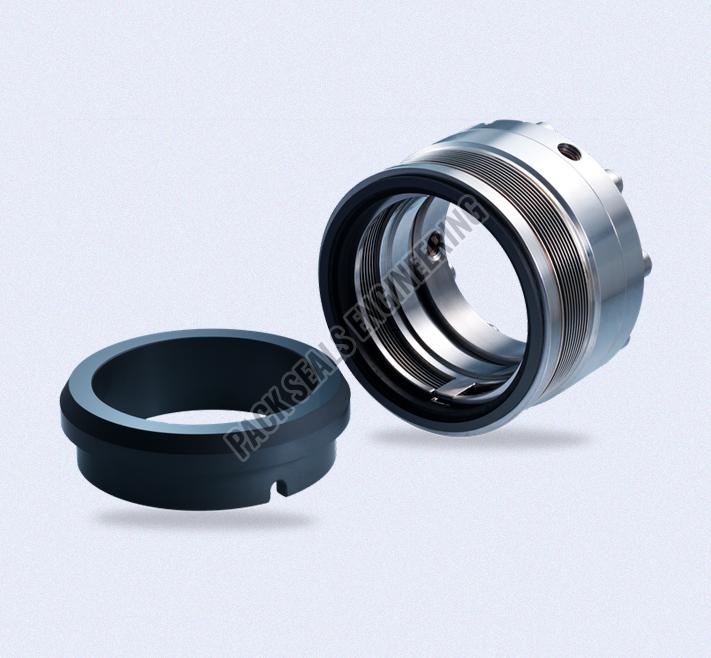

Leading Manufacturers, Exporters, Wholesaler and Retailer of PS250 Metal Bellows Seals, PS250N Metal Bellows Seals and PS254 Metal Bellows Seals from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Shape | Round |
| Country of Origin | India |
| Feature | For unstepped shafts, Single seal, Balanced, Independent of direction of rotation, Metal bellows rotatingx |
| Advantages | For extreme temperature ranges, No dynamically loaded O-Ring, Self cleaning effect, Short installati |
| Operating Range | Shaft diameter: d1 = 24 ... 150 mm (0.94" ... 6"), Externally pressurized : p1 = ... 25 bar (363 PSI |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Carbon graphite antimony impregnated (A), Silicon carbide (Q12)
- Seat: Silicon carbide (Q1)
- Bellows: Inconel® 718 hardened (M6), Hastelloy® C-276 (M5)
- Metal parts: CrNiMo steel (G), Hastelloy® C-4 (M)
Recommended Applications
- Process Industry
- Oil & Gas Industry
- Refining Technology
- Petrochemical Industry
- Chemical Industry
- Cold Media
- Highly Viscous Media
- Pumps
- Special Rotating Equipment
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Pressure | High Pressure, Low Pressure, Medium Pressure |
| Feature | Durable, Easy To Use,For unstepped shafts, Single seal, Balanced, Independent of direction of rotation, Metal bellows rotatingx |

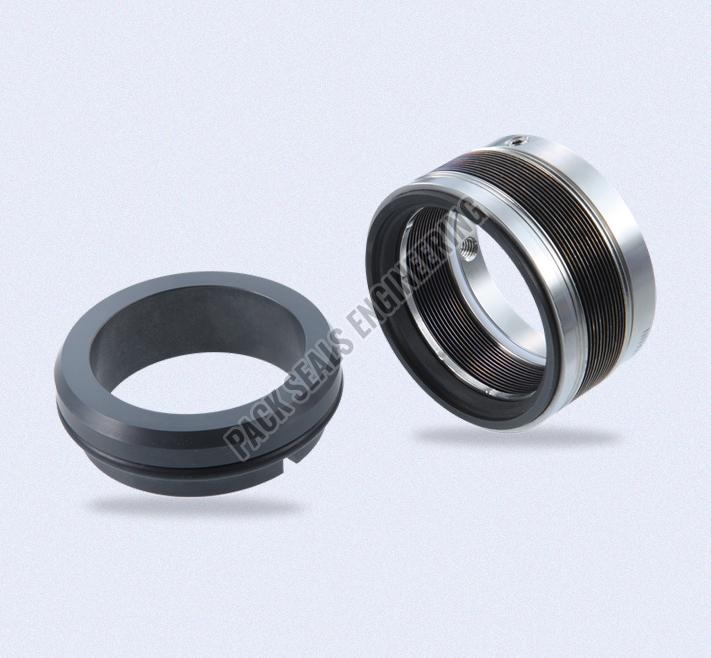

| Type | PS250N Metal Bellows Seals |
| Thickness | 1-5mm |
| Country of Origin | India |
| Advantages | For extreme temperature ranges, No dynamically loaded O-Ring, Self cleaning effect, Short installati |
| Operating Range | Shaft diameter: d1 = 16 ... 100 mm (0.63" ... 4"), Externally pressurized : p1 = ... 25 bar (363 PS |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Carbon graphite antimony impregnated (A), Silicon carbide (Q12)
- Seat: Silicon carbide (Q1)
- Bellows: Inconel® 718 hardened (M6), Hastelloy® C-276 (M5)
- Metal parts: CrNiMo steel (G), Duplex (G1), Hastelloy® C-4 (M)
Recommended Applications
- Process Industry
- Oil & Gas Industry
- Refining Technology
- Petrochemical Industry
- Chemical Industry
- Hot Media
- Cold Media
- Highly Viscous Media
- Pumps
- Special Rotating Equipment
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Shape | Round |
| Pressure | High Pressure, Low Pressure, Medium Pressure |
| Country of Origin | India |
| Feature | Single seal, Balanced, Independent of direction of rotation, Stationary metal bellows |
| Advantages | For high or low temperature applications |
| Operating Range | Pressure (single ply bellows): p = vacuum ... 20 bar ( ... 290 PSI), Pressure (two ply bellows): p = |
Preferred Buyer From
| Location | Anywhere in India |
Recommended Applications
- Refining Technology
- Power Plant Technology
- Chemical Industry
- High and low temperature hydrocarbon services
- Residual oil
- Gas oil
- Low temperature ethylene
- Pumps
- Special rotating equipment
Materials
- Seal face: High density carbon graphite
- Seat: Silicon carbide (Q2)
- Bellows: Inconel® 718 (M6)
- Secondary seals: Graphite
- Metal parts: 1.4404, Carpenter® 42 (T4)
