Mechanial Seals
Leading Manufacturers, Exporters, Wholesaler and Retailer of Pusher Seals, Elastomer Bellows Seals, Standard Cartridge Seals, Metal Bellows Seals, Split Seals, Dry Gas Seals and Agitator Seals from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Specialities | External Configuration Balanced Independent Of Direction Of Rotation Independent Of Pressure Direction |
| Type | Industrial Seals |
| Country of Origin | India |
| Advantages | Robust and easy to install design, Springs protected from the product, No metal parts on the produc |
| Operating Range | Shaft diameter: d1 = 15 ... 300 mm (0.59 |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Silicon Carbide (Q2), CrMo cast steel (S)
- Seat: Carbon graphite resin impregnated (B), Silicon carbide (Q2)
- Secondary seals: EPDM (E), NBR (P), FKM (V), FFKM (K), coated (M)
- Springs: CrNiMo steel (G)
- Metal parts: CrNiMo steel (G)
Recommended Applications
- Process industry
- Oil and gas industry
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Water and waste water technology
- Mining industry
- Building services industry
- Food and beverage industry
- Shipbuilding
- Sugar industry
- Metal production and processing
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |
| Advantages | Shaft protection over entire seal length, Protection of seal face during installation due to special bellows design, Insensitive to shaft deflections due to large axial movement ability, Universal application opportunities, Important material certif |
| Specialities | For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of directi |
| Operating Range | Shaft diameter: d1 = 10 ... 100 mm (0.39" ... 3.94"), Pressure: p1 = 16 bar (230 PSI), vacuum ... 0. |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1, eSiC-Q7)
- Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)
- Elastomer: NBR (P), EPDM (E), FKM (V),HNBR (X4)
- Metal parts: CrNiMo steel (G), Hastelloy® (M)
- Further materials upon request.
Recommended Applications
- Fresh water supply
- Building services engineering
- Waste water technology
- Food technology
- Sugar production
- Pulp and paper industry
- Oil industry
- Petrochemical industry
- Chemical industry
- Water, waste water, slurries
- (solids up to 5 % by weight)
- Pulp (up to 4 % otro)
- Latex
- Dairies, beverages
- Sulfide slurries
- Chemicals
- Oils
- Chemical standard pumps
- Helical screw pumps
- Stock pumps
- Circulating pumps
- Submersible pumps
- Water and waste water pumps
- Oil applications
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |

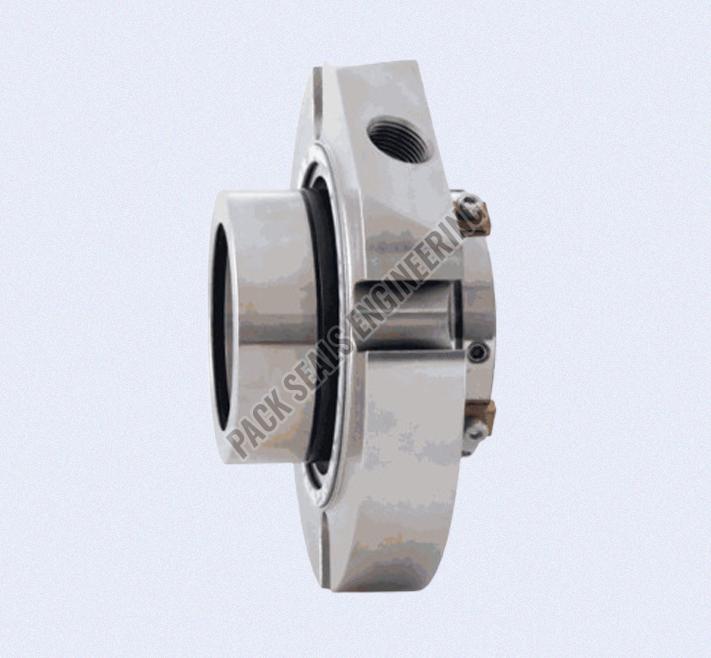

| Specialities | Single seal, Available for standard (Cartex-ASPN) and big bore (Cartex-ABPN) seal chambers, Cartridge, Balanced, Independent of direction of rotation, Single seals with flush (-ASPN, -ABPN) and with quench combined with lip seal (-ASQN, -ABQN) or thr |
| Advantages | Ideal for use in ANSI process pumps, Universal applicable for packings conversions, retrofits or ori |
| Operating range | Cartex-ASPN, - ABPN, -ASTN, -ABTN, -ASQN, -ABQN, Shaft diameter: d1 = 1.000" ... 3.750", Other size |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Silicon carbide (Q1), Carbon graphite resin impregnated (B), Tungsten carbide (U2)
- Seat: Silicon carbide (Q1)
- Secondary seals: FKM (V), EPDM (E), FFKM (K), Perflourocarbon rubber/PTFE (U1)
- Springs: Hastelloy® C-4 (M)
- Metal parts: CrNiMo steel (G)
Recommended applications
- Process industry
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Power plant technology
- Pulp and paper industry
- Water and waste water technology
- Mining industry
- Food and beverage industry
- Universally applicable
- ANSI process pumps
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Pressure | High Pressure, Low Pressure, Medium Pressure |
| Feature | Durable, Easy To Use,For unstepped shafts, Single seal, Balanced, Independent of direction of rotation, Metal bellows rotatingx |
| Type | PS250N Metal Bellows Seals |
| Thickness | 1-5mm |
| Country of Origin | India |
| Advantages | For extreme temperature ranges, No dynamically loaded O-Ring, Self cleaning effect, Short installati |
| Operating Range | Shaft diameter: d1 = 16 ... 100 mm (0.63" ... 4"), Externally pressurized : p1 = ... 25 bar (363 PS |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Carbon graphite antimony impregnated (A), Silicon carbide (Q12)
- Seat: Silicon carbide (Q1)
- Bellows: Inconel® 718 hardened (M6), Hastelloy® C-276 (M5)
- Metal parts: CrNiMo steel (G), Duplex (G1), Hastelloy® C-4 (M)
Recommended Applications
- Process Industry
- Oil & Gas Industry
- Refining Technology
- Petrochemical Industry
- Chemical Industry
- Hot Media
- Cold Media
- Highly Viscous Media
- Pumps
- Special Rotating Equipment
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |

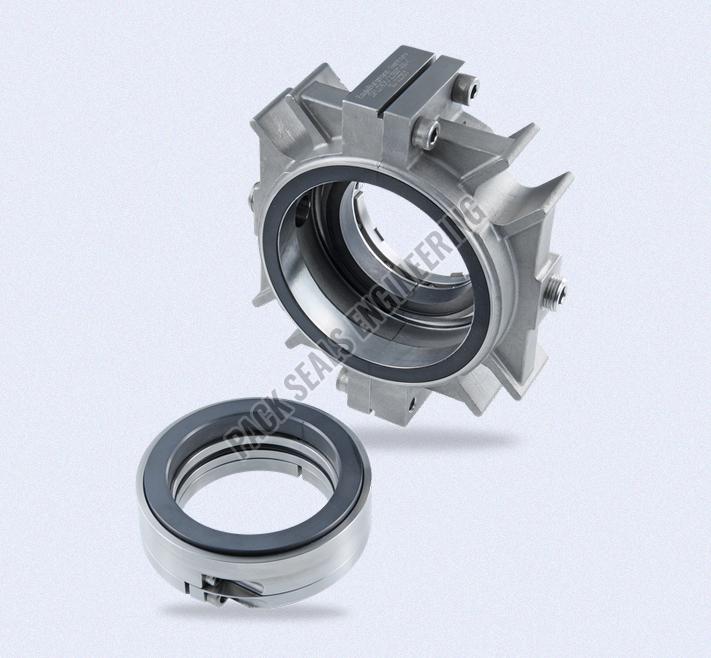

| Specialities | Fully split single seal, 2 x 2 segments, pre-assembled, Semi-cartridge, Balanced, Stationary springs, Bi-directional, External pressurization, Built-in flushing connections, Installation and wear control |
| Operating Range | Shaft diameter: d1 = 50 ... 150 mm (1.940" ... 6.000") Pressure: p1 = 10 bar (145 PSI), Temperature |
| Advantages | Reduced repair and downtime: 2 x 2 pre-assembled design speeds up and simplifies installation instal |
Preferred Buyer From
| Location | Anywhere in India |
Recommended Applications
- Process industry
- Petrochemical Industry
- Chemical Industry
- Power Plant Industry
- Pulp and Paper Industry
- Centrifugal pumps
- Agitators
- Displacement pumps
- Conveying pulp with stock pumps
- Conveying timber to refiners with pumping screws
- Circulation of pulp-and-water mixtures in storage vessels
- Pump stations for waste water treatment
- Cooling water pumps for energy generation
Materials
- Seal face: Carbon graphite antimoniny impregnated (A), Silicon carbide (Q6)
- Seat: Silicon carbide (Q6)
- Secondary seals: FKM (V), EPDM (E), NBR (P)
- Springs: CrNiMo steel (G)
- Metal parts: CrNiMo steel (G)
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Application | Industrial Use |
| Feature | Good In Quality,Balanced, Independent of direction of rotation, Stationary multiple springs, API682 arrangement 2 containment seal |
| Country of Origin | India |
| Advantages | Dry contact secondary seal, Prevention of hazardous emissions, Can be used as a secondary seal of ta |
| Operating Range | Pressure: p = 2 bar (29 PSI) normal operation, max. 60 bar (870 PSI), Pressure: p1 = 10 bar (145 PSI |
Preferred Buyer From
| Location | Anywhere in India |
Recommended Applications
- Chemical industry
- Refining technology
Materials
- Seal face: Special carbon
- Seat: Silicon carbide (Q1, Q2)
- Secondary seals: FKM (V)
- Metal parts: CrNiMo steel (G)
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Country of Origin | India |

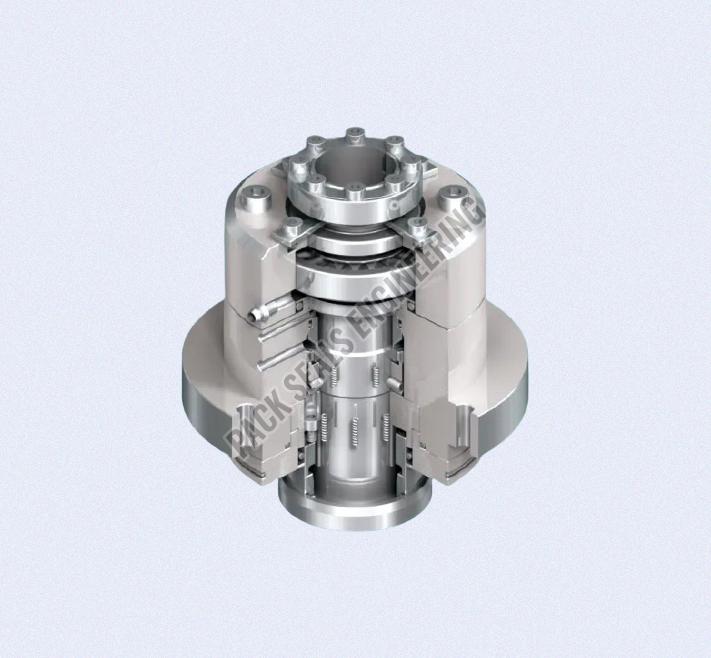

| Specialities | For top entry drives, Double seal, Unbalanced, Independent of direction of rotation, Multiple springs rotating, Liquid-lubricated, Cartridge unit |
| Advantages | Ready-to-fit and factory-tested unit, With or without bearing available, Patented hydrodynamic groov |
| Operating Range | Shaft diameter: d1 = 20 ... 500 mm (0.79" ... 19.69"), Pressure: p1 = vacuum ... 30 bar (... 435 PSI |
Preferred Buyer From
| Location | Anywhere in India |
Recommended Applications
- Refining technology
- Petrochemical industry
- Chemical industry
- Pharmaceutical industry
- Reactors
- Agitators
- Special rotating equipment
Materials
- Seal faces: Carbon graphite or Silicon carbide, FDA conform
- Seats: Silicon carbide, FDA conform
- Secondary seals and metallic parts acc. to application and customers' requirement.
