Elastomer Bellows Seals

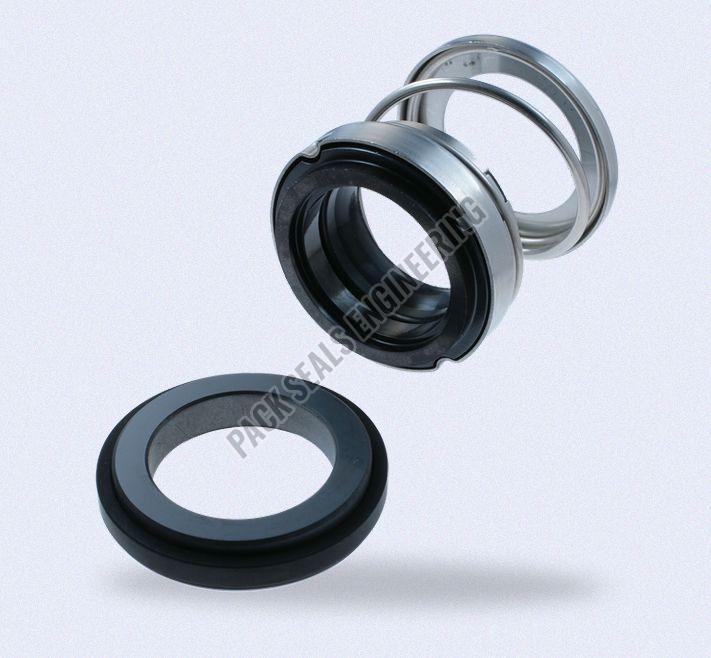

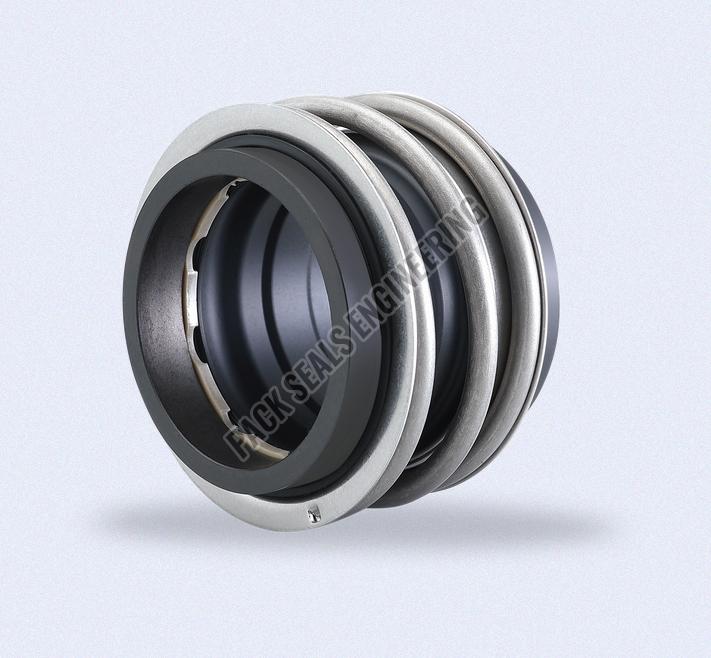

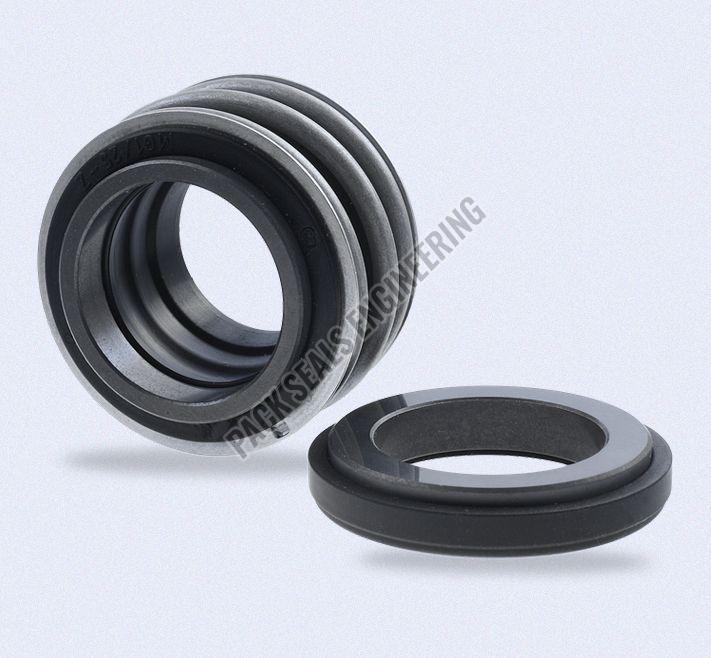

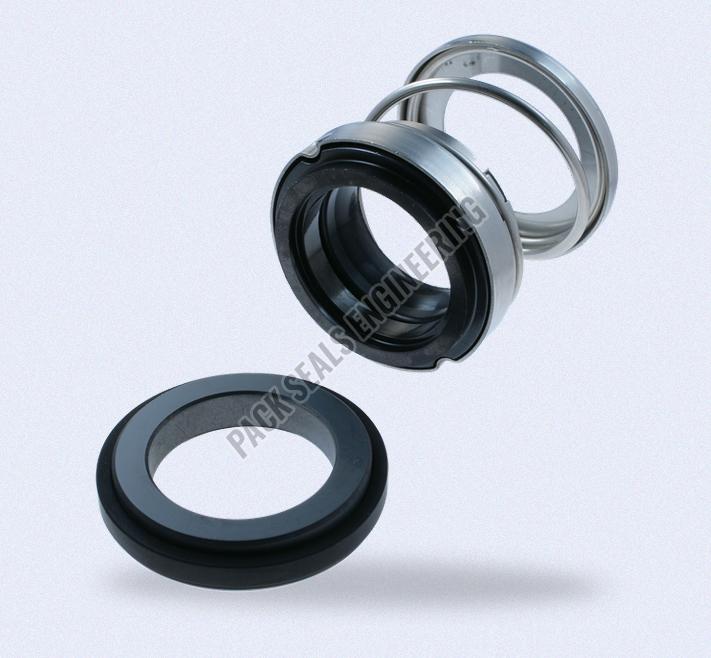

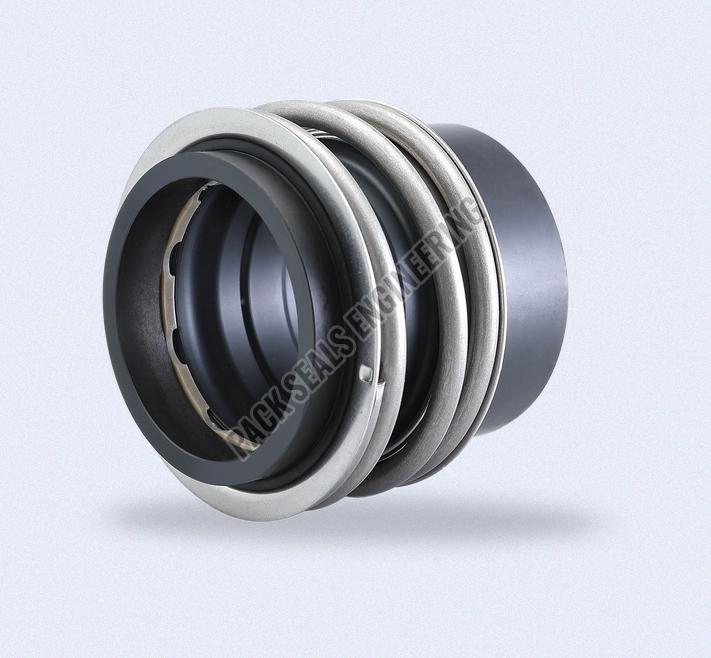

Leading Manufacturers, Exporters, Wholesaler and Retailer of PS143 Elastomer Bellows Seals, PS210 Elastomer Bellows Seals, PS212 Elastomer Bellows Seals and PS213 Elastomer Bellows Seals from Ghaziabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |
| Advantages | The EA560 is self-adjusting to shaft misalignments and deflections because of the loosely inserted seal face as well as the ability of the bellows to stretch and tighten. The length of the contact area of the bellows with the shaft is an optimum comp |
| Specialities | Single seal, Loosely inserted seal face provides self-adjusting capability, In-house manufactured sl |
| Operating Range | Shaft diameter: d1 = 8 ... 50 mm (0.375" ... 2"), p1 = 7 bar (102 PSI), vacuum ... 0.1 bar (1.45 PS |
Preferred Buyer From
| Location | Anywhere in India |
Recommended Applications
- Water and waste water technology
- Chemical industry
- Process industry
- Water and waste water
- Glycols
- Oils
- Industrial pumps/equipment
- Submersible pumps
- Engine pumps
- Circulating pumps
Materials
- Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
- Seat: Aluminium oxide (V), Silicon carbide (Q1, Q2)
- Elastomer: NBR (P), FKM (V)
- Metal parts: CrNi steel (F)
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |
| Advantages | Shaft protection over entire seal length, Protection of seal face during installation due to special bellows design, Insensitive to shaft deflections due to large axial movement ability, Universal application opportunities, Important material certif |
| Specialities | For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of directi |
| Operating Range | Shaft diameter: d1 = 10 ... 100 mm (0.39" ... 3.94"), Pressure: p1 = 16 bar (230 PSI), vacuum ... 0. |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (Q1, eSiC-Q7)
- Seat: Silicon carbide (Q1, eSic-Q7), Tungsten carbide (U3)
- Elastomer: NBR (P), EPDM (E), FKM (V),HNBR (X4)
- Metal parts: CrNiMo steel (G), Hastelloy® (M)
- Further materials upon request.
Recommended Applications
- Fresh water supply
- Building services engineering
- Waste water technology
- Food technology
- Sugar production
- Pulp and paper industry
- Oil industry
- Petrochemical industry
- Chemical industry
- Water, waste water, slurries
- (solids up to 5 % by weight)
- Pulp (up to 4 % otro)
- Latex
- Dairies, beverages
- Sulfide slurries
- Chemicals
- Oils
- Chemical standard pumps
- Helical screw pumps
- Stock pumps
- Circulating pumps
- Submersible pumps
- Water and waste water pumps
- Oil applications
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |
| Advantages | 100 % compatible with MG12, Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings, Optimal alignment characteristic through self-cleaning of disk/shaft, Improved centering across entire pressur |
| Specialities | For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of direct |
| Operating Range | Shaft diameter: d1 = 10 ... 100 mm (0.55" ... 3.94"), Pressure: p1 = 18 bar (261 PSI), vacuum up to |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSiC-Q7, Q1)
- Seat: Silicon carbide (eSic-Q7, Q1)
- Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)
- Metal parts: CrNiMo steel (G), Hastelloy® (M)
Recommended applications
- Fresh water supply
- Building services engineering
- Waste water technology
- Food technology
- Sugar production
- Pulp and paper industry
- Oil industry
- Petrochemical industry
- Chemical industry
- Water, waste water, slurries
- (solids up to 5 % by weight)
- Pulp (up to 4 % otro)
- Latex
- Dairies, beverages
- Sulfide slurries
- Chemicals
- Oils
- Chemical standard pumps
- Helical screw pumps
- Stock pumps
- Circulating pumps
- Submersible pumps
- Water and waste water pumps
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Cold Rolled Steel |
| Finishing | Polished |
| Shape | Round |
| Type | Industrial Seals |
| Country of Origin | India |
| Advantages | 100 % compatible with MG13, Small outer diameter of bellows support (dbmin) enables direct retaining ring support, or smaller spacer rings, Optimal alignment characteristic through self-cleaning of disk/shaft, Improved centering across entire pressu |
| Specialities | For plain shafts, Single and dual seal, Elastomer bellows rotating, Balanced, Independent of directi |
| Operating Range | Shaft diameter: d1 = 16 ... 60 mm (0.63" ... 2,36"), Pressure: p1 = 18 bar (261 PSI), vacuum ... 0. |
Preferred Buyer From
| Location | Anywhere in India |
Materials
- Seal face: Carbon graphite antimony impregnated (A), Carbon graphite resin impregnated (B), Silicon carbide (eSiC-Q7, Q1)
- Seat: Silicon carbide (eSic-Q7,Q1)
- Elastomer: NBR (P), EPDM (E), FKM (V), HNBR (X4)
- Metal parts: CrNiMo steel (G), Hastelloy® (M)
Recommended Applications
- Fresh water supply
- Building services engineering
- Waste water technology
- Food technology
- Sugar production
- Pulp and paper industry
- Oil industry
- Petrochemical industry
- Chemical industry
- Water, waste water, slurries (up to 5 % by weight)
- Pulp (up to 4 % otro)
- Latex
- Dairies, beverages
- Sulfide slurries
- Chemicals
- Oils
- Chemical standard pumps
- Helical screw pumps
- Stock pumps
- Circulating pumps
- Submersible pumps
- Water and waste water pumps
